3’X 4’X 8(with plinth)
3’X 4’X 6’6” (without plinth)
Height of Plinth – 1’6’”

1. Foundation - around Below GL 6 inch, shall vary from site to site
2. The empty space under base after fitting WC pan filled by Bricks bats/ Hard Murum/ Sand/ Gravel - as per availability at site with ramming.

WC Pan ceramic Orissa pattern squatting Pan 20” X 16”

P trap 20 mm water seal with slope of waste disposal pipes towards pit is 1:10

4 kg/Sq. cm PVC pipe is use with required fittings

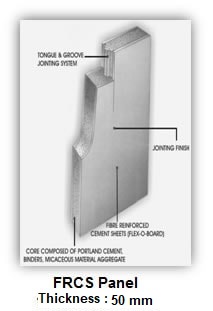

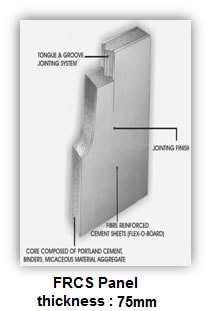

The FRCS panels for walls with Fibre reinforced cement sheets comprising core composed of Portland cement, binders and micaceous material aggregate. Thickness of each panel shall be 50 mm. Panels shall have a smooth finish.Roof consists of Corrugated pre-painted steel fixed with required fittings. Cement sheet option for roof can also be provided.

The wall panels are fitted along vertical edge with each other through a tongue and groove joint mechanism as well as bolting arrangement wherever required. Joints are also sealed with wire mesh tapes and putty wherever required for smooth finish.

The door panel 6ft x 2ft in composite board of recycled material with locking arrangement in both sides aligned to FRCS panel at the front.

Water primer with two coats provide externally and internally. Tiger toilet logo on wall as per directions given.

Sanitary Tiles for floor and walls upto a height of 1 ft. shall be provided in each superstructure. Along with tiles on the squatting floor.

SSuitable arrangement may be provided. (Optional – Not included in general scope )

Suitable arrangement may be provided. (Optional – Not included in general scope )

RCC precast panel with smooth finish by cement plastering.

Suitable arrangement may be provided. (Optional – Not included in general scope )

Suitable arrangement may be provided. (Optional – Not included in general scope )

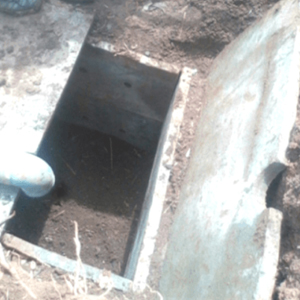

Rectangular pit for toilet Size - 4 ft X 4 ft Depth- 4 ft height

FRP Bio Digester Tank – proprietary design in circular cross section (Dia. 1000 to 1200 mm X 600mm height), with locking arrangement and drainage holes.
The pit has no bottom lining. RCC panels or FRCS panels may also be used as an alternative, in square cross section

Rectangular pit for toilet Size - 4 ft X 4 ft Depth- 4 ft height

FRP Bio Digester Tank – proprietary design in circular cross section (Dia. 1000 to 1200 mm X 600mm height), with locking arrangement and drainage holes. The pit has no bottom lining.
RCC panels or FRCS panels may also be used as an alternative, in square cross section

1” holes/pores on each panel in staggered manner

The FRP cover or the cover formed with two panels to be placed on the Bio-Digester lining walls. The Cover shall have lifting arrangement.
RCC cover shall be used in case of RCC panel tanks

Pit filled with following layers of stone from bottom up
60 to100 mm boulders
15 mm to 20 mm boulders
Sand layer/Coir
Cow Dung Compost

Filter media overlaid by Tiger Toilet bio-media, for Tiger Toilet Digesters
