Major Components:
-

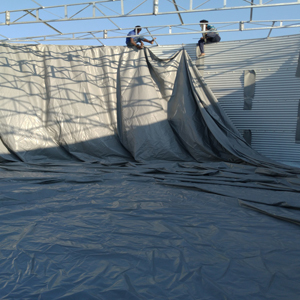

Eastore tanks are lined with the finest quality material to make the tank leak proof and also to keep the water healthy and fresh. Our liner are made from food grade fibre reinforced PVC. The polyester scrim adds extra strength to the liner making is shear and puncture resistant, thus avoiding leakage of water and lesser maintenance. The liner is protected from puncture by the geotextile spread at the bottom of the tank making it more durable.
Liner Specifications
-
PVC/PE reinforced
-
760 GSM onwards
-
0.8 mm thick
-
Food Grade
-
Anti-Algae
-
UV Stabilised
-
PVC can be permanently bonded to the multifilament woven scrim.
-
Shear resistant
-
Puncture resistant
-
High tensile strength
-
Tested by NABL approved lab for food grade and super chlorination

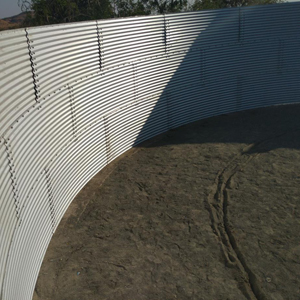

Eastore tanks are manufactured from highest quality zincalumeTata Bluescopesteel. Zincalume is an alloy of 43.5 % Zinc and 55% aluminium and 1.5% Silicon which has more strength than galvanised steel. Zincalume provides excellent corrosion resistance and resistance to peeling and cracking under varying climatic conditions.
-

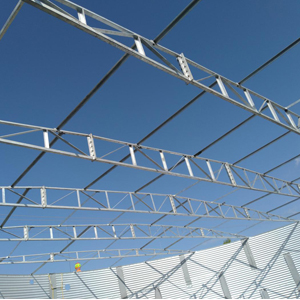

Our trusses are manufactured from highest quality Hot dip galvanized steel (IS 1367).We use superior and innovative soft wares and engineering expertise to design the trusses as they play a critical part in structural stability of the tanks.
Benefits
-
Easy to Install.
-
Can be transported to remote locations with ease.
-
Highly durable with 25 years.
-
Capacities ranging from 15 to 150 kl.
